At Home Owners Association, we understand the importance of robust and efficient roofing structures for Australian homes. Timber roof trusses are a popular choice, offering strength, versatility, and cost-effectiveness.
Our comprehensive timber roof truss design guide for Australia will walk you through the essential steps and considerations. From understanding building codes to selecting the right materials, we’ll help you navigate the complexities of truss design for your project.
Understanding Timber Roof Trusses in Australian Construction
Definition and Components
Timber roof trusses form the backbone of many Australian buildings. These engineered structural frameworks support the roof and distribute its weight to the exterior walls. The primary components include:
- Top chord: Supports the roof covering and transfers loads to web members
- Bottom chord: Forms the ceiling and ties the structure together
- Web members: Internal bracing that connects top and bottom chords
Advantages for Australian Homes
Timber roof trusses offer significant benefits in Australian construction:
- Cost-effectiveness: Prefabrication cuts on-site labour costs
- Rapid installation: Trusses install faster than traditional rafters
- Structural strength: Engineered to withstand Australia’s climate
- Eco-friendly: Responsibly sourced timber reduces carbon footprint
The Australian Building Codes Board provides information on energy efficiency in buildings. Proper insulation in timber trusses can contribute to reduced energy consumption costs.
Common Truss Types in Australia
Several truss designs suit various Australian construction needs:

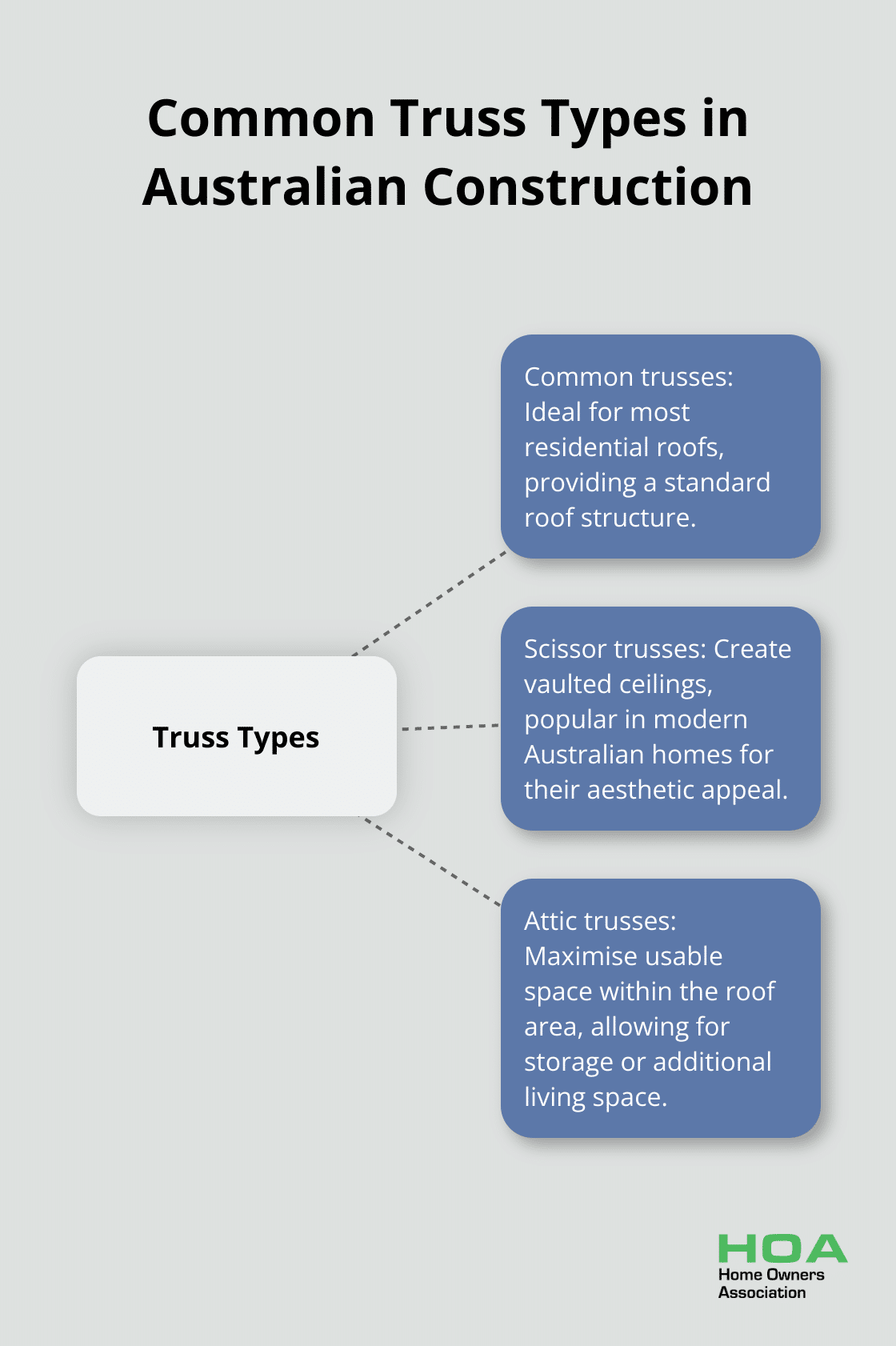

- Common trusses: Ideal for most residential roofs
- Scissor trusses: Create vaulted ceilings, popular in modern Australian homes
- Attic trusses: Maximise usable space within the roof area
The selection of truss type depends on factors such as roof pitch, span, and desired interior space.
Design Considerations
When designing timber roof trusses, Australian builders must consider:
- Span and pitch: These factors influence the truss type and overall roof structure
- Load requirements: As per the National Construction Code
- Climate zones: Environmental loads may vary depending on location
Material Selection
The choice of timber species impacts truss performance:
- Radiata pine: Commonly used due to its workability and strength-to-weight ratio
- Spotted gum: Preferred for larger spans due to its superior strength
Proper treatment ensures longevity and compliance with Australian standards.
As we move forward, let’s explore the key considerations in designing timber roof trusses, including Australian building codes and standards that govern their construction and use.
Navigating Australian Building Codes for Timber Trusses
NCC Requirements for Timber Structures
The National Construction Code (NCC) establishes performance requirements for timber structures in Australia. These regulations focus on stability, durability, and fire resistance. For timber roof trusses, the NCC specifies load-bearing capacities and structural integrity standards. A building in a flood hazard area must be designed and constructed, to the degree necessary, to resist flotation, collapse or significant permanent movement.
Key Australian Standards for Truss Design
AS 1720.1 governs timber structures in Australia. This standard outlines stress-grading requirements, with C24 as a common grade for roof trusses. It also addresses wind design, a critical factor in truss performance. AS 4440-1997 provides installation guidelines for nail-plated timber roof trusses, ensuring proper assembly and longevity.
Climate-Specific Design Considerations
Australia’s diverse climate zones significantly impact truss design. Coastal regions face up to 50% higher environmental loads than inland areas, which necessitates more robust designs.
Trusses in cyclone-prone areas must withstand extreme wind forces, while those in alpine regions must account for snow loads. Designers must tailor truss specifications to these regional variations for optimal performance.
Optimising Truss Spacing and Pitch
TrussSpacer: GTS600 for 600mm centres, GTS900 for 900mm centres. These recommendations are a guide only for the erection of standard gable trusses up to 13000mm span.
Roof pitch also plays a vital role in truss design. Most Australian homes feature pitches between 15 to 25 degrees, which balances aesthetics with functionality. Steeper roofs (above 22 degrees) offer better load handling capabilities but may increase material costs and complexity.
Timber Selection for Optimal Performance
The choice of timber species is vital for truss performance. Radiata pine is widely used due to its excellent strength-to-weight ratio and workability. For larger spans or heavier loads, hardwoods like spotted gum may be necessary. The moisture content of timber should not exceed 19% to prevent future warping or shrinkage, which ensures long-term structural integrity.
The next chapter will explore the step-by-step process of designing timber roof trusses, including initial planning, software utilisation, and structural calculations.
How to Design Timber Roof Trusses Step by Step
Initial Planning and Measurements
The first step in timber roof truss design requires accurate measurements. Measure the length and width of your roof space, and account for unique features like skylights or chimneys. Consider the desired roof pitch, which typically ranges from 15 to 25 degrees in Australia.
Determine the truss spacing next. Common spacings in Australia are 600mm, 900mm, or 1200mm. Increasing the spacing from 600mm to 900mm can reduce the number of trusses needed by 33% (potentially lowering costs).
However, this may require stronger battens, so consult with a structural engineer to find the optimal balance.
Truss Design Software Utilisation
Modern truss design relies on specialised software. MiTek Viewer is a popular choice among Australian designers. This software allows you to verify parts, products, and dimensions, then generates a detailed design that complies with Australian standards.
Pay close attention to the load calculations when using the software. The National Construction Code specifies that residential roofs typically experience dead loads of 40 to 60 kg/m² and live loads of 25 kg/m². Your design should account for these loads, as well as environmental factors like wind and snow in applicable regions.
Structural Calculations and Material Selection
After creating a preliminary design, perform detailed structural calculations. This step ensures your trusses can withstand all anticipated loads. For an 8m span, a king post truss often suits, but your specific requirements may vary.
Material selection plays an equally important role. Radiata pine is the most common choice for timber roof trusses in Australia due to its excellent strength-to-weight ratio. For larger spans or heavier loads, consider hardwoods like spotted gum. The timber’s moisture content should not exceed 19% (to prevent future warping or shrinkage).
Documentation and Approval Process
The final step involves preparing detailed documentation for approval. Include your truss design plans, structural calculations, and material specifications. Highlight how your design complies with relevant Australian standards, particularly AS 4440-2004 for the installation, bracing, and connection of nail plated timber trusses.
A qualified structural engineer should review your design. They can verify your calculations and ensure compliance with local building codes. This step is essential for the safety and longevity of your structure.
Final Thoughts
Designing timber roof trusses in Australia requires a thorough understanding of local building codes, climate considerations, and structural engineering principles. Our timber roof truss design guide for Australia emphasises the importance of accurate measurements, appropriate software, and meticulous structural calculations. Professional expertise plays a crucial role in the truss design process, ensuring compliance with local regulations and meeting the highest safety standards.
We anticipate exciting developments in Australian timber truss construction, including advancements in sustainable forestry practices and engineered wood products. The integration of advanced design software and building information modelling (BIM) technologies may streamline the design and approval processes, leading to more efficient construction methods. As the construction industry evolves, staying informed about the latest trends and best practices in timber roof truss design will become essential for homeowners and builders.
